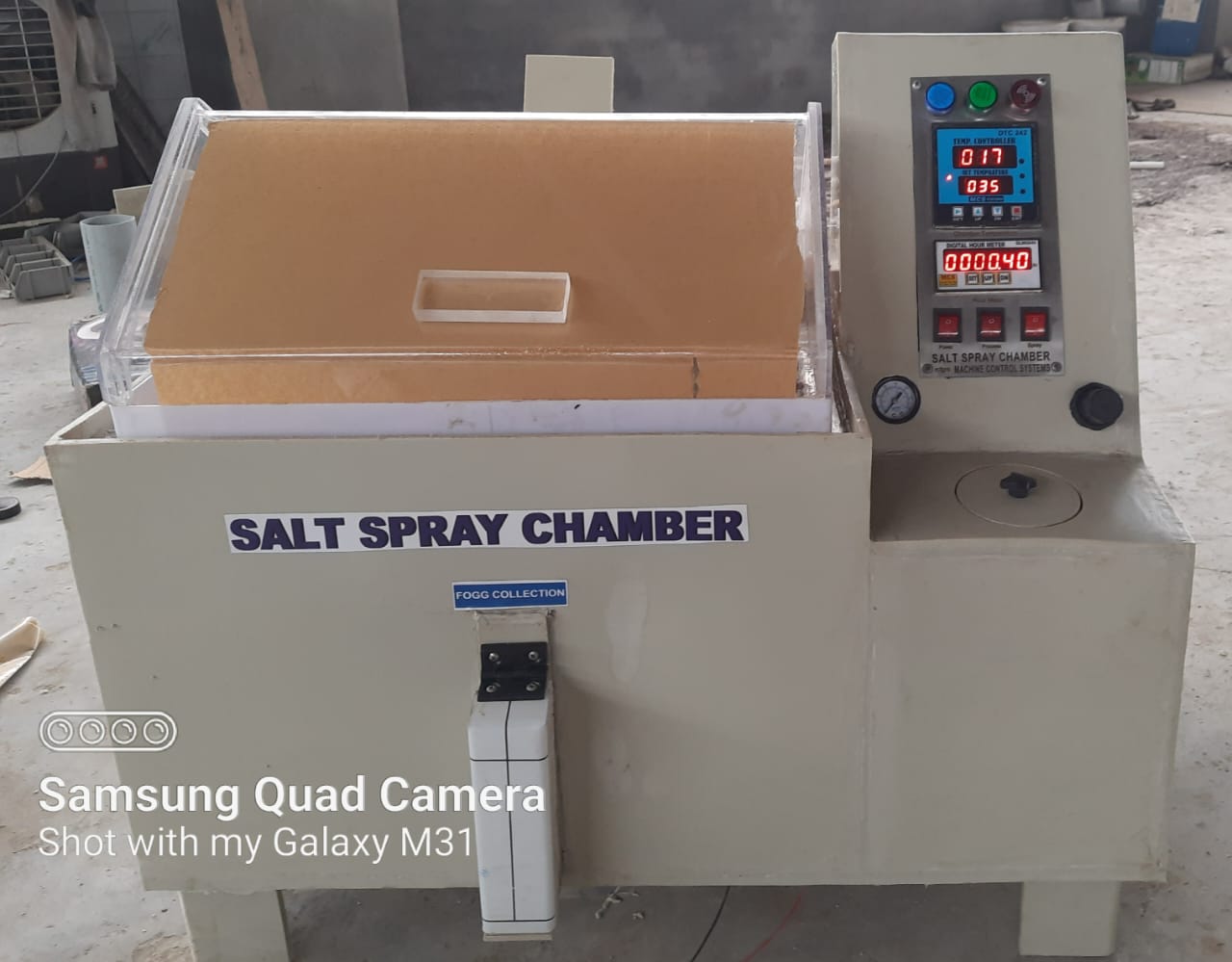

SST Small Basic Model – Salt Spray Test Chamber

SST Small Basic Model is a highly reliable and accurate Salt Spray Test Chamber designed to evaluate the corrosion resistance of coated and uncoated materials. Hence This model is widely used in industrial laboratories and quality control departments to simulate harsh environmental conditions and assess the durability of products exposed to corrosive atmospheres.

In modern industries, components are constantly exposed to humidity, salt-laden air, and chemical fumes. These conditions accelerate corrosion, leading to material degradation and reduced product life. The SST Small Basic Model enables manufacturers to test their products under controlled salt spray conditions, ensuring superior quality, durability, and compliance with international standards.

Overview: SST Small Basic Model

This time-tested salt spray chamber has been specifically engineered to determine the rust-proof capability of materials and coatings. It provides a controlled environment that closely replicates real-life weathering conditions such as marine atmosphere and industrial pollution exposure.

The system is designed in accordance with globally accepted testing standards, including:

• ASTM B117 – Standard Practice for Operating Salt Spray Apparatus
• ISO 9227 – Corrosion Tests in Artificial Atmospheres
• JIS Z 2371 – Japanese Industrial Standard for Salt Spray Testing

The chamber ensures uniform fog distribution, precise temperature control, and consistent testing conditions, making it ideal for repeatable and accurate corrosion analysis.

Applications of Salt Spray Test Chamber: SST Small Basic Model

The SST Small Basic Model is widely used across various industries, including:

• Automobile and Auto Components Manufacturing
• Electroplating and Surface Coating Industries
• Paint and Powder Coating Testing
• Fasteners and Hardware Testing
• Electrical and Electronics Components
• Aerospace and Defense Materials
• Metal Processing and Fabrication Units

This makes it an essential tool for quality assurance and R&D departments.

Other Models in this Category

1. SALT SPRAY 64 Liter
2. SALT SPRAY 108 Liter
3. SALT SPRAY 122 Liter
4. SALT SPRAY 162 Liter
5. SALT SPRAY 216 Liter Basic
6. SALT SPRAY 240 Liter Basic

Click Here for ASTM B117 and ISO 9227 Standard Models

Click Here for Graphical Touch Screen Models (ASTM B117, ISO 9227 & JIS 2371)

Visit Our Other Website – pH Meters & Controllers

Key Features: SST Small Basic Model

• Chamber Capacity: 108 Liters – Ideal for Laboratory Use
• Chamber Size: 600mm × 400mm × 450mm
• Overall Size: 775mm × 500mm × 605mm (Approx.)
• Main Chamber made of high-quality PP (Polypropylene) – 8mm thick
• Transparent Acrylic Top – 5mm thick for clear visibility
• 3–4 Material Hanging Rods (based on job size)
• Separate Water Tank (12 Liters Capacity)
• Low Saline Solution Level Indication on Front Panel
• Fully Automatic Waste Water Drainage System
• Digital Temperature Controller with Dual Display
• Over-Temperature Safety Warning Indicator
• Corrosion-resistant, shock-proof long-life heaters (No glass heater)
• Standardized Fog Collection System
• Hour Meter (999 Hours 59.9 Minutes)
• Process Completion Alarm with Buzzer
• Power Supply: 220 VAC
• Warranty: 1 Year

Equipment Used

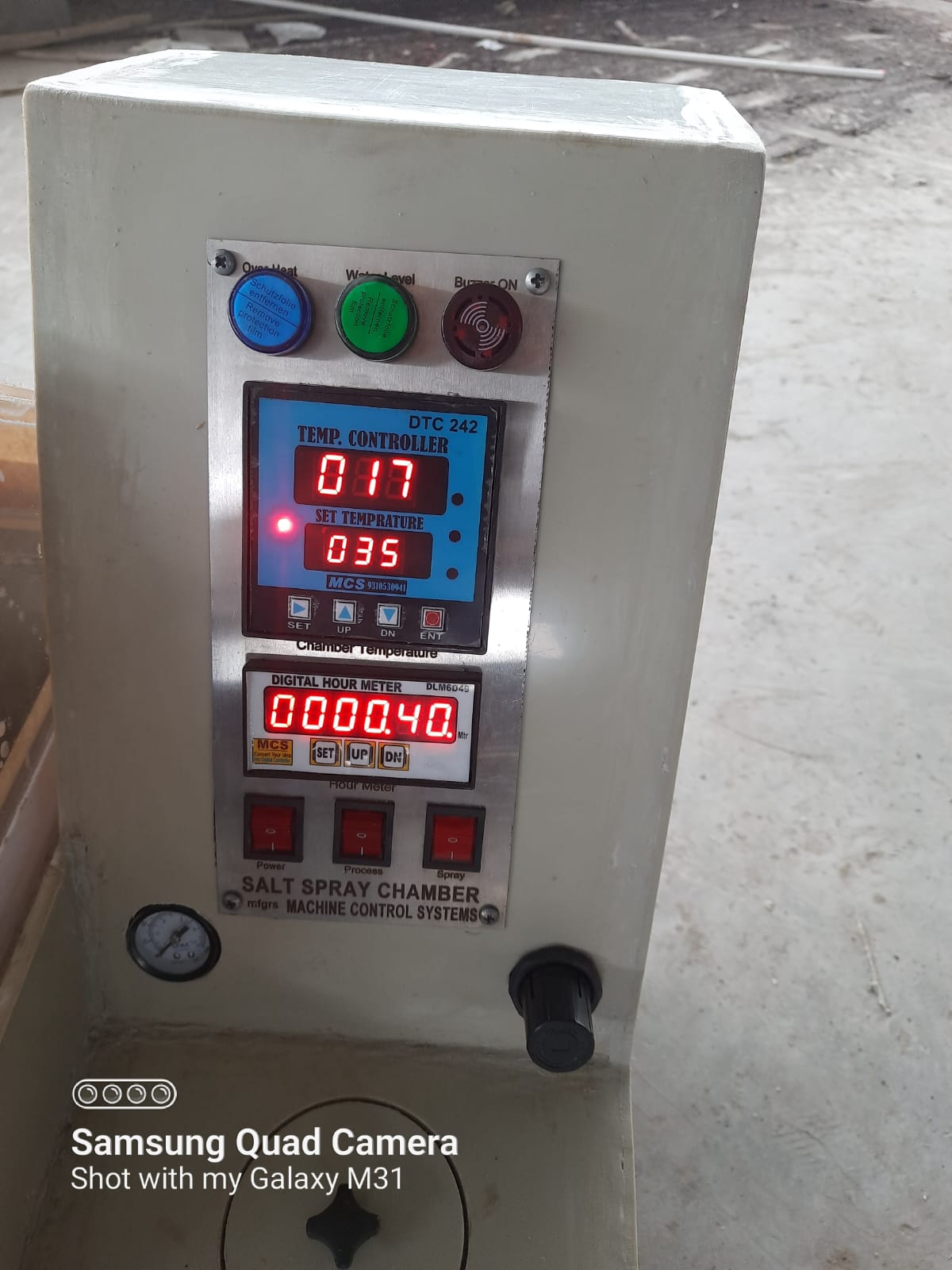

1. Temperature Controller:
Ensures precise control of chamber temperature for generating salt fog. Maintains a stable range between 32°C to 37°C with automatic cut-off to prevent overheating.

2. Hour Meter:
Hence Hoiur Meter used to track total test duration and monitor exposure time of samples. Helps in recording accurate testing cycles with hour and minute display.

3. Air Supply System:
Clean and dry compressed air is required for proper atomization. Air pressure must be maintained at 1 Kg/cm² ± 0.2 Kg/cm² for consistent fog generation.

4. Atomization and Fog Collection:
The system ensures uniform fog formation. As per standards, 1.0 to 2.0 mL of solution is collected per hour for every 80 cm² of collection area during continuous operation.

Benefits of SST Small Basic Model

• Accurate corrosion testing under controlled conditions
• Improves product quality and durability
• Helps meet international compliance standards
• Reduces product failure in real environments
• Low maintenance and user-friendly operation
• Cost-effective solution for industrial testing

Conclusion

The SST Small Basic Model Salt Spray Chamber is a dependable and essential testing instrument for industries focused on corrosion resistance and material durability. With robust construction, precise control systems, and compliance with international standards, it ensures reliable performance and long service life.

Whether you are a manufacturer, quality control engineer, or R&D professional, this model provides an efficient and economical solution for corrosion testing applications.
